- 3FParts Product Code (3PC)
- 3F-00125-160-2183

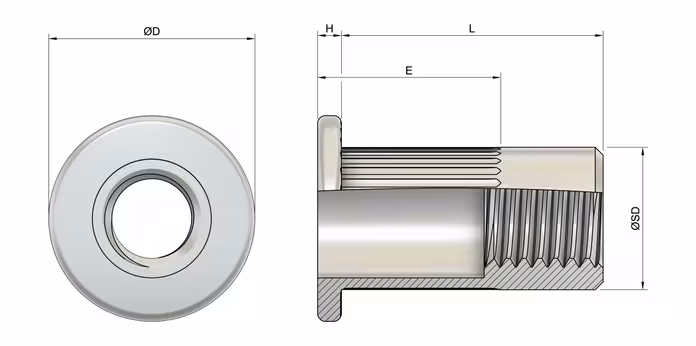

- Head Diameter (D)
- 16mm
- Length (L)
- 18mm
- Grip Length
- 3.1mm-5.5mm
- External Rivet Diameter (SD)
- 10.9mm
- Head Length (H)
- 1.5mm
- Length 2 (E)
- 11mm
- Recommended Hole Size
- 11mm
- Thread Size (Dia.)
- M8
- Thread Pitch
- 1.25 mm
- Material
- Stainless Steel 304
- Grip Length
- 0.5mm-3mm
M8 Round Body Large Flange Rivet Nut / Insert Nut - Stainless Steel 304
- 16mm Head Diameter (D)
- 18mm Length (L)
- 3.1mm-5.5mm Grip Length
- 10.9mm External Rivet Diameter (SD)
- 1.5mm Head Length (H)
- 11mm Length 2 (E)
- 11mm Recommended Hole Size
- M8 Thread Size (Dia.)
- 1.25 mm Thread Pitch
- Stainless Steel 304 Material
- 0.5mm-3mm Grip Length
The M8 Round Body Large Flange Rivet Nut is designed for secure, high-strength fastening in thin materials where tapping threads is impossible. Made from premium-grade Stainless Steel 304, this insert nut offers excellent corrosion resistance, making it ideal for industrial, automotive, marine, and general-purpose applications.
Key Features:
Thread Size: M8 (Metric)
Material: Stainless Steel 304 – strong, rustproof, and durable
Body Type: Round
Flange Type: Large flange for increased load distribution

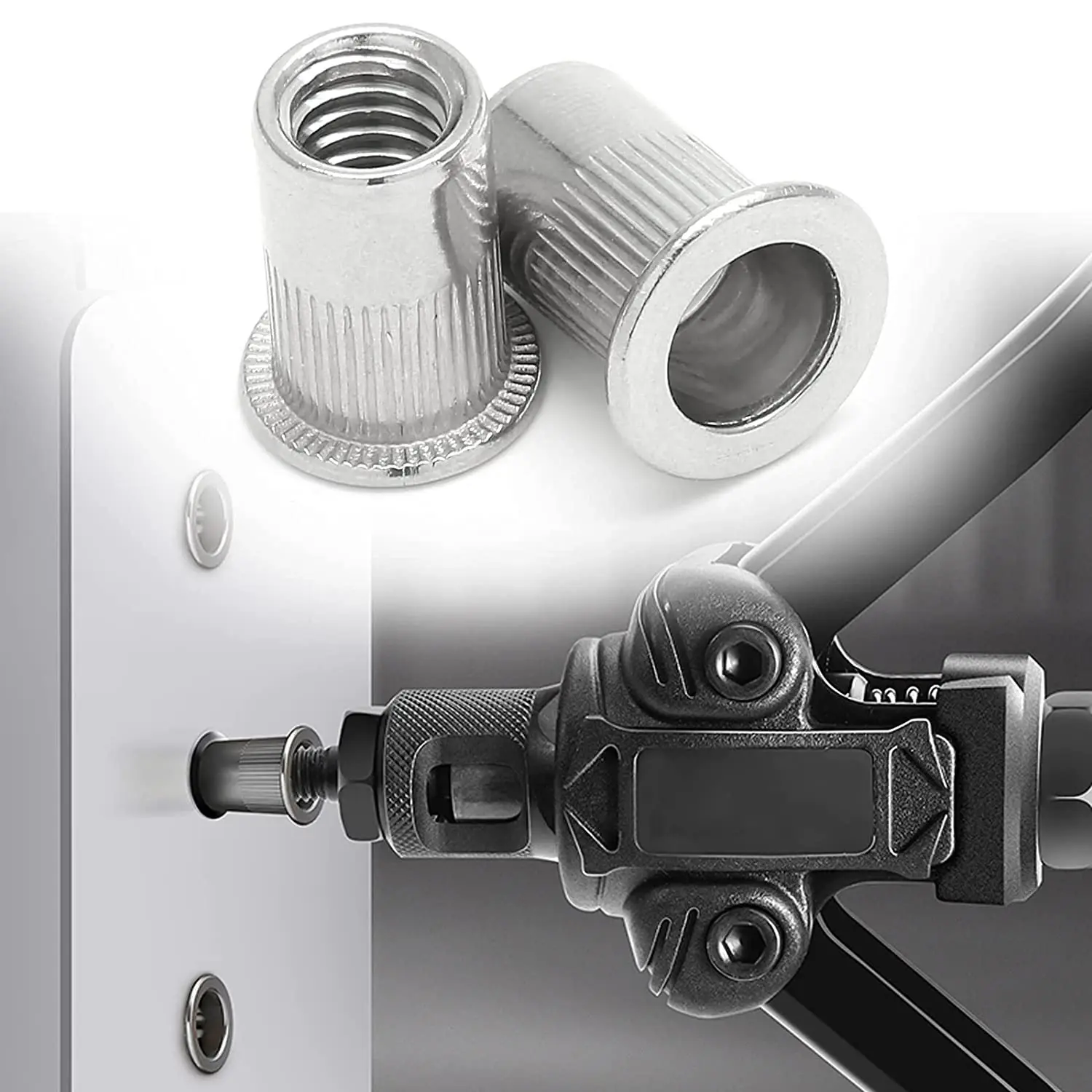

Installation: Quick and easy installation using rivet nut tools
Benefits:
✅ Corrosion and oxidation-resistant – suitable for harsh environments
✅ Provides strong internal threads in thin or soft materials
✅ Distributes load over a wider area due to the large flange design
✅ Ideal for use in metal, plastic, fiberglass, and composite panels
✅ Reliable fastening solution where welding or tapping is not feasible
Common Applications:
Automotive panel assembly
Machinery and equipment construction
HVAC systems
Marine hardware
DIY fabrication and repair
