M3 x 8mm Phillips Combination Pan Head With Washer Machine Screws - Stainless Steel 304

3FParts Product Code (3PC): 3F-00125-294-2436
Email to a Friend

M3 x 8mm Phillips Combination Pan Head With Washer Machine Screws - Stainless Steel 304

3FParts Product Code (3PC): 3F-00125-294-2436

For bulk orders or B2B inquiries, email us: 3fparts@gmail.com

Thread Size (Dia.): M3
Thread Pitch: 0.50 mm
Length (L): 8mm
Material: Stainless Steel 304


Brands: 3FPARTS

Technical Specification : Download .


You may also like

3FParts Product Code (3PC)
3F-00125-294-2436

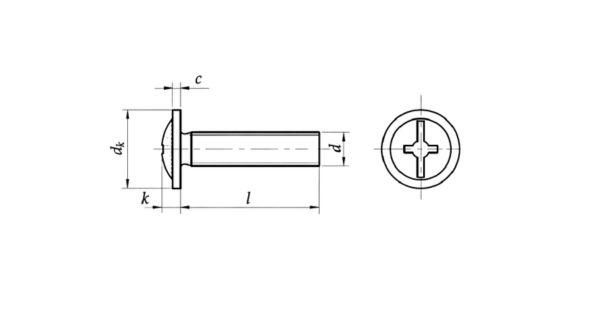

Flange Diameter (dk)
6.30mm - 6.50mm
Flange Thickness (C)
0.50mm - 0.60mm
Head Thickness (k)
1.75mm - 1.85mm
Thread Size (Dia.)
M3
Thread Pitch
0.50 mm
Length (L)
8mm
Material
Stainless Steel 304
Fully Threaded
Yes
Download Tech Spec
M3 x 8mm  Phillips Combination Pan Head With Washer Machine Screws - Stainless Steel 304

M3 x 8mm Phillips Combination Pan Head With Washer Machine Screws - Stainless Steel 304

  • 6.30mm - 6.50mm Flange Diameter (dk)
  • 0.50mm - 0.60mm Flange Thickness (C)
  • 1.75mm - 1.85mm Head Thickness (k)
  • M3 Thread Size (Dia.)
  • 0.50 mm Thread Pitch
  • 8mm Length (L)
  • Stainless Steel 304 Material
  • Yes Fully Threaded
