- 3FParts Product Code (3PC)
- 3F-00125-912-1930
- External Diameter (OD)
- 39mm, Tolerance: +0/-0.62mm
- Thickness (T)
- 3.3mm, Tolerance: +0/-0.6mm
- Internal Diameter (ID)
- 23mm, Tolerance: +0.33/-0mm
- For Use With Thread Size
- M22
- Manufacturing Standard
- DIN 125
- Material
- Stainless Steel 316

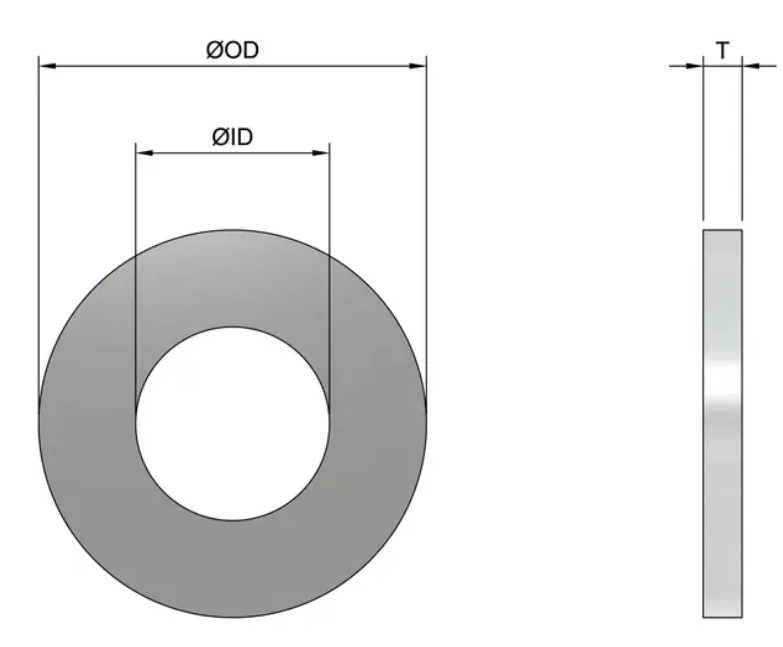

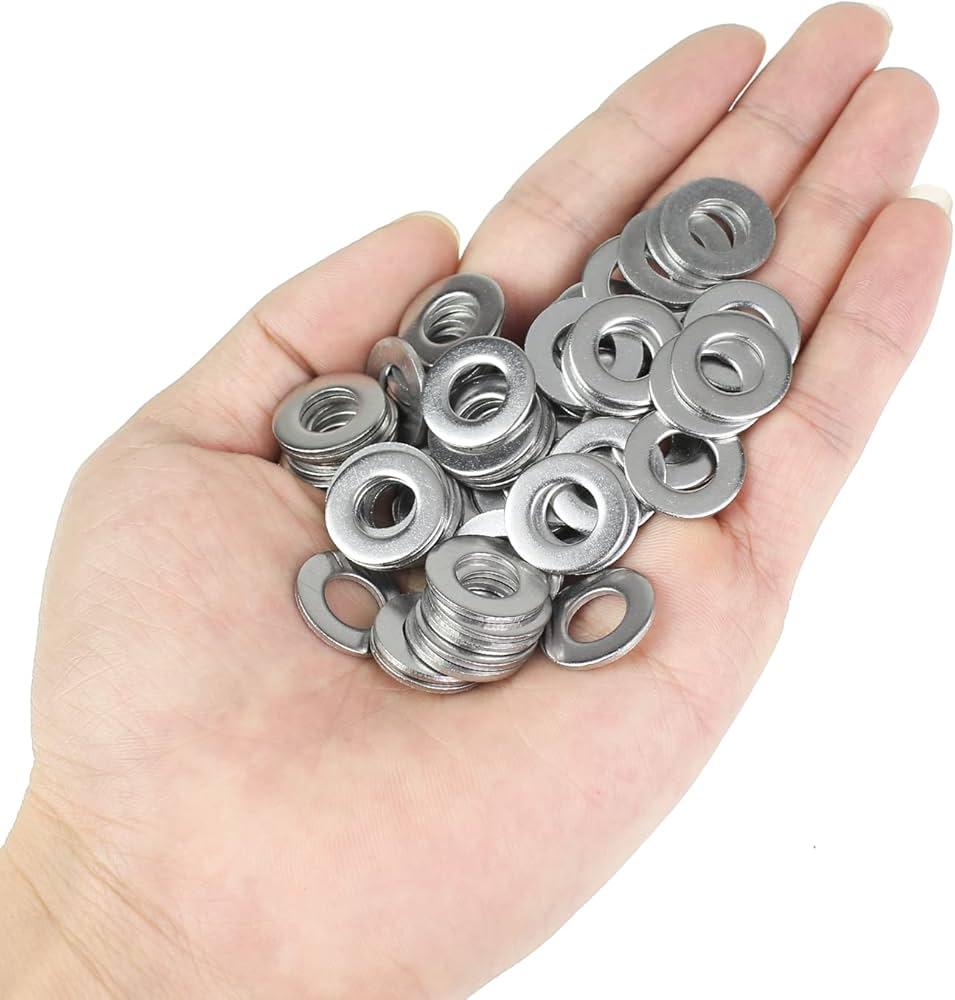

M22 (22mm) Plain Washer (DIN 125) - Stainless Steel 316
- 39mm, Tolerance: +0/-0.62mm External Diameter (OD)
- 3.3mm, Tolerance: +0/-0.6mm Thickness (T)
- 23mm, Tolerance: +0.33/-0mm Internal Diameter (ID)
- M22 Thread Size (Dia.)
- 2.50 mm Thread Pitch
- DIN 125 Manufacturing Standard
- Stainless Steel 316 Material
- 39mm External Diameter (OD)
- 3.00mm Thickness (T)
