- 3FParts Product Code (3PC)
- 3F-00125-428-2286

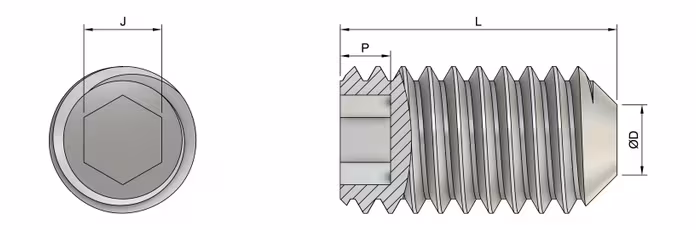

- Cup Diameter (D)
- 8mm, Tolerance: +0/-0.36mm
- Drive Depth (Max) (P)
- 8mm
- Drive Depth (Min) (P)
- 4.8mm
- Socket Size (J)
- 6mm
- Thread Size (Dia.)
- M12
- Thread Pitch
- 1.75 mm
- Length (L)
- 35mm
- Manufacturing Standard
- DIN 916
- Material
- Stainless Steel 304
- Fully Threaded
- Yes

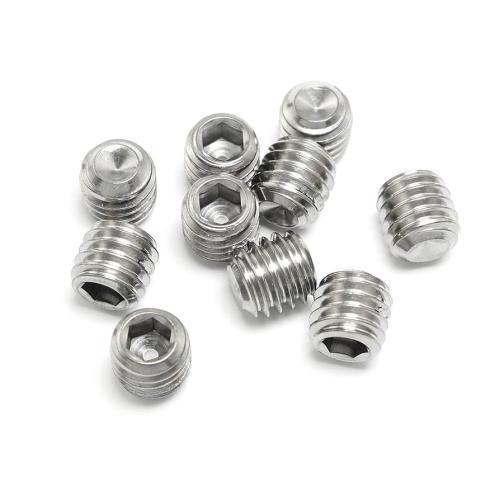

M12 x 35mm Grub Screw (DIN 916) - Stainless Steel 304
- 8mm, Tolerance: +0/-0.36mm Cup Diameter (D)
- 8mm Drive Depth (Max) (P)
- 4.8mm Drive Depth (Min) (P)
- 6mm Socket Size (J)
- M12 Thread Size (Dia.)
- 1.75 mm Thread Pitch
- 35mm Length (L)
- DIN 916 Manufacturing Standard
- Stainless Steel 304 Material
- Yes Fully Threaded
