- 3FParts Product Code (3PC)
- 3F-00125-501-2198
- Socket Size (J)
- 17mm, Tolerance: +0/-0.27mm
- Nut Thickness (T)
- 8mm, Tolerance: +0/-0.36mm
- Overall Thickness (L)
- 18mm, Tolerance: +0/-0.43mm
- Thread Length (Max) (E)
- 13.35mm
- Thread Size (Dia.)
- M10
- Thread Pitch
- 1.50 mm
- Material
- Stainless Steel 304 (A2-70)
- Manufacturing Standard
- DIN 1587

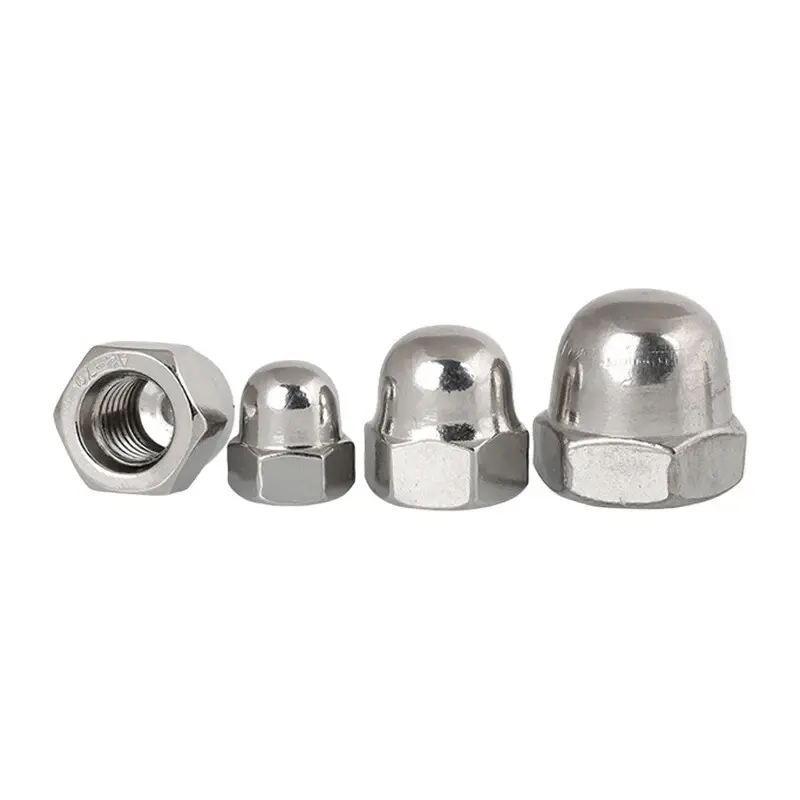

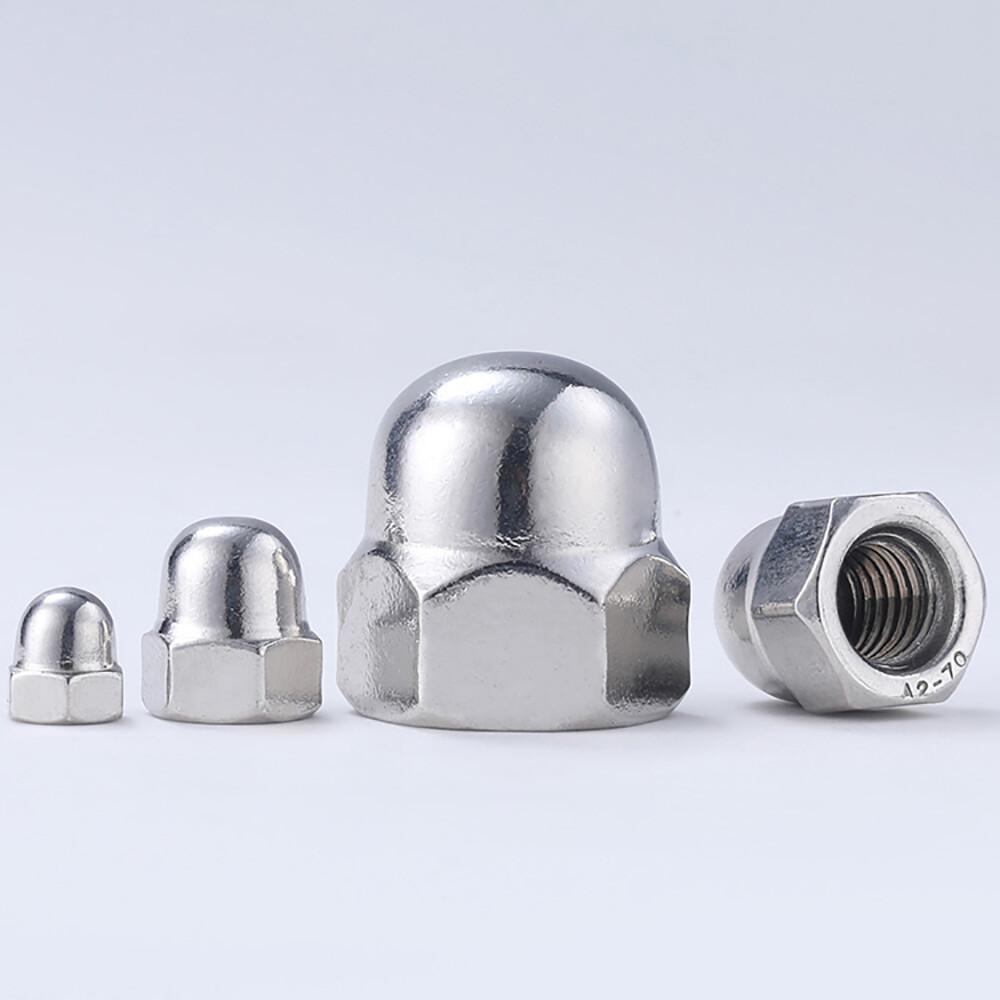

M10 Dome Nuts (DIN 1587) - Stainless Steel 304 (A2-70)
- 17mm, Tolerance: +0/-0.27mm Socket Size (J)
- 8mm, Tolerance: +0/-0.36mm Nut Thickness (T)
- 18mm, Tolerance: +0/-0.43mm Overall Thickness (L)
- 13.35mm Thread Length (Max) (E)
- M10 Thread Size (Dia.)
- 1.50 mm Thread Pitch
- Stainless Steel 304 (A2-70) Material
- DIN 1587 Manufacturing Standard
